▎Description
The Dairuike DRK-240FS Square Hole Full-Stroke Rotary Laser Chuck, with its innovative design and multifunctional performance, has set a new industry standard in the field of laser tube cutting. This rotary laser chuck is specially designed to meet the processing needs of various shapes and sizes of tubes, thereby completely changing the limitations of traditional round holes and ushering in a new era for the multi-type tube processing industry.

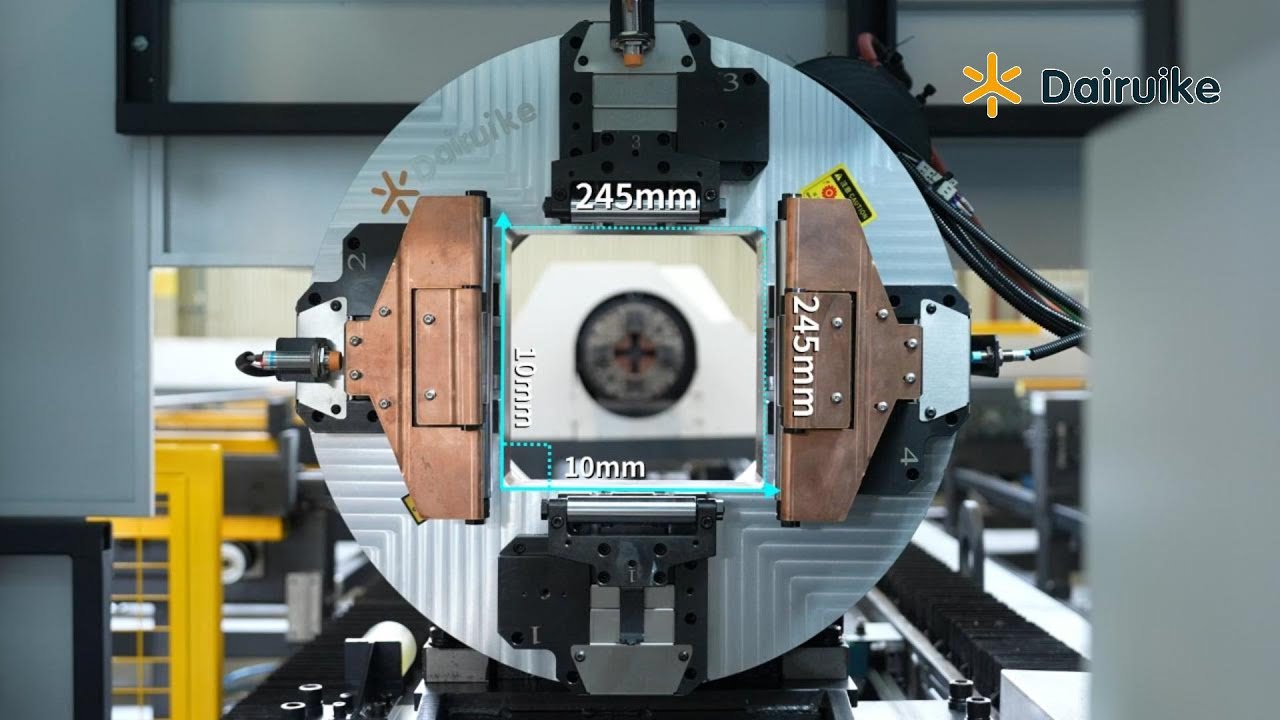

The DRK-240FS Square Hole Full-Stroke Rotary Laser Chuck features a unique square-through-hole structure design. Its most significant advantage lies in its adaptability to various shapes of tubes, including square tubes, round tubes, and various profiles. This design not only breaks the constraints of traditional round hole chucks but also greatly enhances the utilization rate of tubes, making processing more flexible and efficient.
The chuck’s processing range for tube diameters is 10 to 230mm, accommodating both square and round tubes of up to 230mm, as well as No. 20 I-beams and channel steels, setting a new record for the maximum processing diameter of square tubes in similar chucks and catering to a variety of user needs for tube processing.
The design of the DRK-240FS Square Hole Full-Stroke Rotary Laser Chuck is simple and flexible. Its full-stroke clamping function allows for uninterrupted processing without the need to change the jaws, significantly enhancing the convenience of operation and continuity of production. The 240FS rotary laser chuck uses an integrated casting and stable gearbox installation, making installation and adjustment more convenient. Its helical gear drive and fully sealed structure effectively prevent tooth jamming, reduce maintenance frequency, and extend the lifespan of the equipment.
In laser tube cutting equipment, the stability and precision of the rotary chuck are crucial. The 240FS rotary laser chuck has a very large clamping force and stronger load-bearing capacity. Its dual roller jaws, both wide and narrow, can easily clamp various shapes of tubes, ensuring stability and precision during the processing of workpieces.
With a large single-claw thrust and enhanced load-bearing capacity, the standard 220JZ laser rotary back chuck can support a weight of up to 260kg with both chucks. This provides strong support in adapting to diverse tube material needs, making it an ideal choice for users seeking high efficiency and precision in processing.
Overall, the Dairuike DRK-240FS Rotary Laser Chuck, with its efficient transmission mechanism, wide adaptability, flexible installation positions, and excellent dust-proof performance, enhances processing efficiency and quality. It has become an important device in the field of tube processing, offering users efficient and stable processing solutions. Choosing the DRK-240FS Rotary Laser Chuck means choosing a reliable and efficient industrial partner, moving towards a future of more efficient and precise processing.
▎Why choose Dairuike rotary laser chuck？
Reasons to Choose Dairuike Rotary Laser Chuck:
Customized Service Solutions: At Dairuike, our team of professional engineers is committed to creating tailor-made rotary laser chuck solutions that cater to your unique needs. Our goal is to exceed customer expectations by providing high-quality chucks that meet your specific application requirements.
Exceptional Customer Support: We offer comprehensive technical support services. Dairuike’s online technical experts are always ready to answer your queries, ensuring a worry-free experience during the use of our rotary laser chucks.
Comprehensive Training Experience: To ensure you can fully utilize our equipment, Dairuike provides comprehensive training conducted by our experienced technical engineers. From installation to operational techniques, we offer detailed guidance to ensure you can use the laser chuck safely and efficiently.
Frequently Asked Questions:
Question: How to balance price and quality? Answer: When selecting a rotary laser chuck, high quality is always the primary consideration. Investing in a high-performance chuck can bring higher production efficiency and better results in the long run.
Question: Why is after-sales service important? Answer: Quality after-sales service is key to ensuring the long-term stable operation of the equipment. Choosing Dairuike means selecting continuous technical support and a professional service team to ensure uninterrupted production.
Question: Is it necessary to conduct an on-site inspection? Answer: For significant equipment investments, personally understanding the supplier’s strength and product performance is very important. An on-site visit can help you gain a more comprehensive understanding of the product and provide a solid basis for your investment decision.
▎Performance parameter
| OD (mm) |
Spindle Bore （mm） |
Centre-height (mm) |
Total Weight (Kg) |
Inertia (K g.cm 2) |
Repeatability （mm） |
Rotary precision mm |
| Φ615 | 245×245 | 315±0.05 | 230 | 69000 | ≤0.05 | ≤0.05 |
| Single Claw trip (mm) |
Single Claw thrust (Kg.f) |
Processing Range (mm) |
Permissible pressure (M pa) |
Rated speed (rpm) |
thickness of pipe （mm） |
Holdup time （h） |
| 115 | 220 | 10-230 | 0.3-0.8 | 150 | ≥1 | 12 |
▎Application
As the laser industry continues to evolve and improve, rotary laser chucks have recently made a breakthrough into a new realm in the field of laser cutting. In response to the tube forming needs of domestic and international customers, Dairuike Rotary Laser Chucks have gradually become their preferred choice. They have been successfully applied in various industries, such as sports equipment, lighting, decorative furnishings, furniture, and kitchen and bathroom appliances, all of which rely heavily on tube cutting and forming. Laser cutting of tubes not only involves fewer processes and higher efficiency, but the quality of the cut workpieces is also superior. Furthermore, it opens up even more possibilities for market development.
